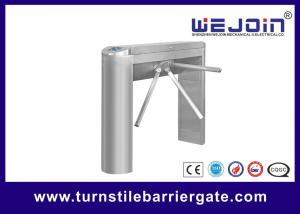

304 stainless steel waist-high full automatic pedestrian access control turnstile gate
Turnstile Barrier Gate Applications
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues, etc.
Turnstile Barrier Gate Technical Parameters
|
Item
|
WJAT210
|
|
Material of housing
|
304 Stainless steel
|
|
Dimension of Housing
|
1200*280*990mm
|
|
Length of Pole(out of the housing)
|
490mm
|
|
Net Weight
|
70KG
|
|
Max load-bearing of pole
|
3kg
|
|
Power Supply
|
AC220V±10%,50HZ;AC110V±10%,60HZ
|
|
Working Voltage of motor
|
DC12V
|
|
Rated Power
|
50W
|
|
Driving Motor
|
Brush dc motor
|
|
Input Interface
|
DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal
driving current. more than 10ms
|
|
Transit speed
|
25-32 persons/min
|
|
Working Temperature
|
-25℃C~+55°C
|
|
Working environment
|
Indoor/ Outdoor
|
|
Relative humidity
|
<95%, no condensation
|
Turnstile Barrier Gate Functions& Features
1). The exquisite rotating plate and self-lock mechanism
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and manual rise up when power on
4). Self-lock within 5 seconds
5). Avoid unauthorized access
6). Counter output
7). Fire alarm emergency signal output
8). Input interfaces available for left access (L), right access(R), emergency (EM), END
Turnstile Barrier Gate After-sale Service:
1-year warranty
Lifetime Service with charge accordingly
