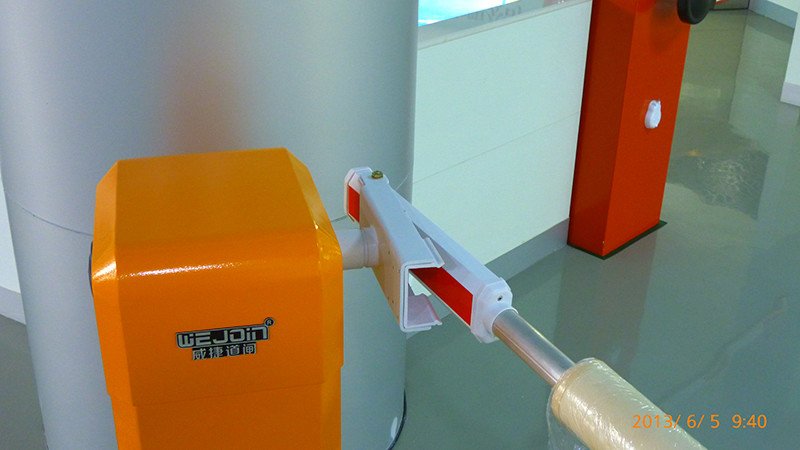

RS485 COM Electric Boom Barrier Infrared Photocells Auto Delay

Name: RS485 COM Electric Boom Barrier Infrared Photocells Auto Delay
Brand: WEJOIN
Price: 1 USD

Brand Name : WEJOIN

Model Number : WJDZ102

Certification : CE,ISO,

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5000 Units / Month

Delivery Time : 3-7 working days

Packaging Details : Carton,wooden box

Trade Terms : EXW,FOB,CIF

Speed : 1S; 1.8S; 3S; 6S

Color : Optional

Motor Material : Die-casting Aluminum alloy

Max Boom Length : 8 metes

COM Interface : RS485

Warranty : 1 Year

Contact Now

Long-life cycle Strong durable electric boom barrier

Functions and Features

1. Infrared photocells connector is available

2. Loop detector connector is available

3. Well-integrated with car parking system equipment, with wire control (must be switch signal)

4. Connector for a traffic light (AC220V, power less than 40W)

5. Offering dry contact signal for car parking system (COM, NC, NO)

6. Auto-delay when closing (adjustable)

Selection of spring

The spring is stretchable one and the specification is as follows:

Spring type	Diameter	Spring length
Small size	4.5MM	280MM
Medium size	5.5MM	280MM
Big size	6.5MM	280MM

Common malfunction and handling

1. The boom has no reaction though the motor is running

Solution: check whether the clutch is lock

2. The boom vibrates too much at its limit position

a. check whether the shock absorption is broken

b. check whether the spring is broken

Warranty and Service Items

1. Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)

2. Lifetime service with charge accordingly.

3. Technical questions are supported.
