Barrier Gate Straight boom installation
Step 1. Fix the boom holder pressboard on the boom with 2pcs of M12*70mm hexagon screw.
Step 2. Press the board by hand, then lift up the boom vertically and install it on the boom holder.
Step 3. Install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
Barrier Gate Folding boom installation
Step 1. Fix the boom holder pressboard on the boom with 2pcs of M12*70mm hexagon screw.
Step 2. Step 2. Press the board by hand, then lift up the boom vertically and install it on the boom holder. Install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
Step 3. Fix the bearing of the connecting unit to the cone axis on the barrier with a screw.
Step 4. Fix the bottom fence to the connecting unit, then release the 2pcs screw of the unit and adjust them to make the fence be perpendicular to the ground.
Toll Barrier Series and Data
1. DZ-1XX/A --slow speed straight boom
Boom length L≤4.5m
Operating time: 6s
Center vertical high: 0.83m
2. DZ-1XX/B--slow speed straight boom
Boom length L≤4.5m
Operating time: 3s
Center vertical high: 0.83m
3. DZ-1XX/C1— 90-degree articulating boom
Boom length L≤5m
Operating time: 6s
Center vertical high: 0.83m
Motor Speed and Boom Type
| Boom type | Boom length (M) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6M≥L＞4.5M | 6S | H=0.8M |
| 4.5M≥L＞3M | 3S |
| 3M≥L | 1.5S |
| Articulated boom, 90 degree | 5M≥L＞3M | 6S |
| 3M≥L | 3S |
| Articulated boom, 180 degree | 5M≥L＞3M | 6S |
| 3M≥L | 3S |
| Fence boom, two-level | 4.5M≥L | 6S | H=0.9M |
| Fence boom, three-level | 4M≥L | 6S | H=1.5M |
Product Tags:
|
|

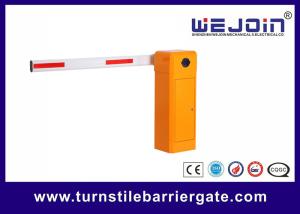

COM RS485 Traffic Barrier Gate Auto Reversing Toll Barrier Images
|
