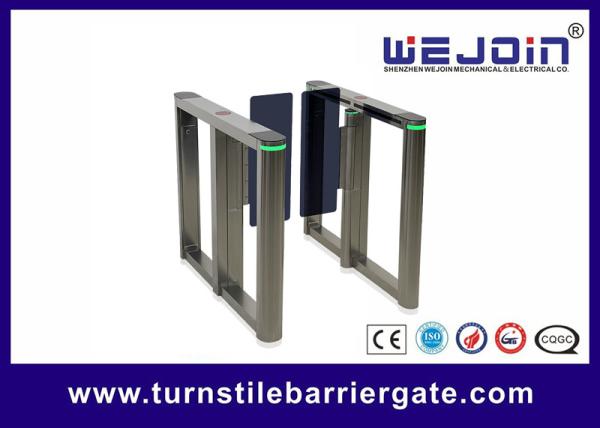

Stainless Steel Security Access Supermarket Entrance Turnstile 600mm
Stainless steel security access supermarket entrance swing barrier gate
Swing Barrier Gate Specifications
| Item | Swing Barrier Mechanism |
| Working Temperature | -20℃ ~ 55℃ |
| Voltage | AC 220V±15% ,110V±15% |
| Driving Motor | DC24V |
| Motor Power | 50W |
| Relative Humidity | 90% (no condensation) |
| Swing Direction | double direction or single |
| Arm Length(Optional) | 600~1100mm (a pair) |
Swing Barrier Main Features
1. The system adopts servo control technology, detects the motor position in real-time, self-learns the load curve, has physical anti-pinch protection, and sensitivity can be adjustable.
2. Supports access mode settings such as card reader, free, and forbidden at entrances and exits.
3. It has access logic detection such as illegal intrusion, trailing passing, detention, reverse passing, and infrared anti-pinch.
4. Opening & Closing Speed can be adjustable.
5. RS232 communication, support Modbus protocol.
6. Opening when power off, DC12V backup battery optional.
7. Support voice function, trumpet optional.
Speed Gate Normally Opening and Fire Function
1. Normally opening Mode: Long press the card reader button for 5S or continuously connect the card reader signal port GND 5S, the swing barrier will enter the normally open mode (for the LO signal 5S is the exit normally open mode, and the RO signal 5S is the enter normally open mode). At this time, the swing barrier is opened (infrared judgment is invalid), the light is displayed green, and the buzzer and trumpet have no output. The signal is canceled, the swing barrier is closed, and the previous state is restored.
2. Fire Mode: When the auxiliary port Fire is connected to GND, the swing barrier will enter the fire mode state. At this time, the swing barrier is opened (infrared judgment is invalid), the light is displayed green, the buzzer sounds, and the voice broadcasts "Fire warning, please evacuate immediately". The signal is canceled, the swing barrier is closed, and the previous state is restored.
