50W Waist Height Automatic Tripod Turnstile Gate 304 Stainless Steel

Name: 50W Waist Height Automatic Tripod Turnstile Gate 304 Stainless Steel
Brand: WEJOIN
Price: 1 USD

Brand Name : WEJOIN

Model Number : Q2

Certification : SO 9001:2008, CE,

Place of Origin : Shenzhen, China

MOQ : 1set

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1, 000 set/month

Delivery Time : 3-15 days depending on the quantity

Packaging Details : Export Wooden Case

Trade Terms : Ex works, CIF

Shape : Bridge-type

Volt : 220V /110V

Rated Power : 50W

Roataing Direction : Double Direction

Frequency : 50Hz/60Hz

Material : 304 Stainless Steel

Contact Now

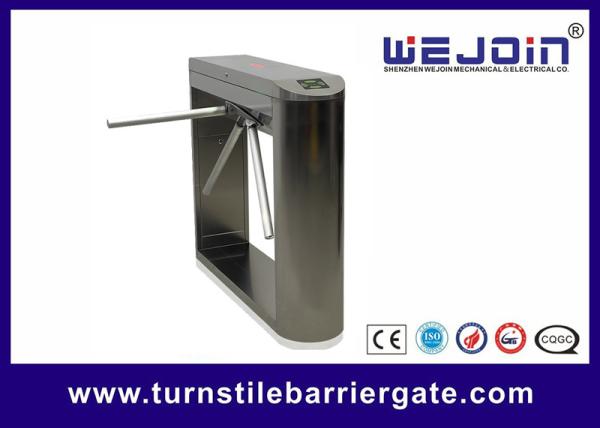

304 Stainless Steel Waist Height Automatic Tripod Turnstile Gate

Tripod Turnstile Applications:

The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.

Turnstile Function and Features:

1. Card reader available, support WEIGAND 26/34 communication card reader.

2. Bi-directional pass/any single direction pass(adjustable).

3. Arm auto-drop when power off and auto rise up when power on and auto stop on an obstacle.

4. Traffic light indicator/Pass direction indicator.

Specifications:

Model	Q2
Manual, Semi or Full-automatic	Full-automatic
Material of Housing	304 Stainless Steel
Dimension of Housing (L×W×H mm)	1200×280×990
Length of Pole (out of housing)	490mm
Net Weight	70kg
Max Load-bearing of Pole	60kg
Driving Force of Pole	2KG
Rotating Direction	Double Direction
Power Supply	220V±10%, 110V±10%
Frequency	50/60HZ
Working Voltage of Motor	DC12V
Rated Power	50W
Transit Speed	30~40 persons/min
Working Temperature	－40°C~55°C
Working Environment	Indoor / Outdoor (Shelter)
Relative Humidity	≤95%
