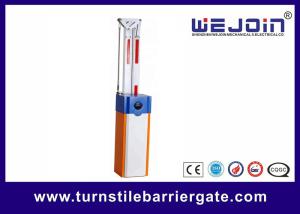

Bi - directional access control Electronic car park automatic gate barrier
Electronic Barrier Gates Quick Detail:
① Name: Bi-directional Barrier Gate
② Application : Parking System
③ peed:3/6 second
④ Feature: Manual release
⑤ Rated Power:300W
⑥ Certificate:CE, ISO,
⑦ Net Weight: 45KG
⑧ Voltage: AC220V, AC110V
Electronic Barrier Gates Description:
Model Selection and Differences
| Model Item | WJDZ12013 | WJDZ12016 |
| Opening Time | 3S | 6S |
| Boom Type | Straight |
| Boom Length | 3M | 4M |
| Voltage | 110V/220V |
| Motor/Power | AC/300W |
| Working Temperature | -35℃ - 75℃ |
| Protection Grade | IP55 |
| Remote Control Distance | 30M~100M |
Electronic Barrier Gates Functions & Features:
1. Advanced manual release, manually operate the boom quickly when power off, and automatic reset when power on.
2. Boom running smoothly with a motor transmission of cranks and shafts.
3. Remote control to operate the barrier gate.
4. Auto-reverse when the boom meets obstruction, and auto-stop mode is optional.
5. Infrared photocells interface is available. (need to install photocell device)
6. Loop detector interface is available, to avoid hitting the car, and automatic boom falling down after car passing. (need to install loop detector)
7. Integrated RS485 communication interface, to control the boom up, down and stop by computer.
8. Interface for R&G light.
9. Integrated counter function, can store the times of opening signal, deduct the times when car passing the loop, boom falling down after car passing through, well improve the traffific effificiency.
